UT10 Puller Package with Mobile Versi Boom and All Adapters21,132.77$

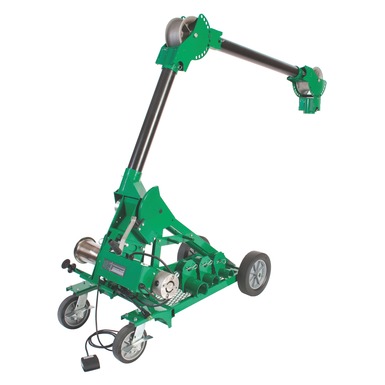

UT10 Puller Package with Mobile Versi Boom and All Adapters
21,132.77$
Add the desired quantity to the selected products.
- The 2-speed Ultra Tugger (UT10-2S) is an all-in-one solution: the only 2-speed cable puller on the market able to switch from a high-speed/low-load pull to a low-speed/high-load pull with a simple double press on the foot control pedal
- Sets up in under 2 minutes and can be used in any cable pulling situation. Intended for pulling cable at both high and low loads
- This combination of speed and versatility can increase your productivity, which translates into more cable pulled in a single day, and therefore greater profit
- The Ultra Tugger 10 (UT10-2S) allows several mounting options; besides using the Mobile VersiBoom™ II, it can also be used with a floor mount or a chain mount.
- The no-load high speed is 16 ft/min and the recommended speed for a load under 4,000 lb will be 12 ft/min. The no-load low speed is 9 ft/min and can be used with loads up to 8,000 lb where the speed would be 6 ft/min, or a momentary maximum capacity of 10,000 lb
- Powerful, rugged motor designed specifically for heavy and light cable pulling applications up to 10,000 lb. The 2-speed motor delivers the fastest pulling time for all needs across a wide range of situations (10,000 lb)
- Easy-control features designed to increase productivity: on-board pulling dynamometer that provides visual information, indicating pulling force and speed changes
- Quick change from high speed to low speed with a simple double press on the pedal. Removable pedal for added convenience.
Features
| Application | Cable puller |
| Inclut | Complete UT10-2S cable puller with mobile VersiBoom II arm and 6 adapters |
| Capacity | Continuous duty: 0 to 28.9 kN (0 to 6,500 LB), 15 MINUTES ON/15 MINUTES OFF: 28.9 to 35.6 kN (6,500 to 8,000 LB), momentary: 35.6 to 44.5 kN (8,000 to 10,000 LB) |
| Accessoire | Adapter weldment 00563 – 2 in. adapter weldment, adapter weldment 00564 – 2-1/2 in. adapter weldment, adapter weldment 00565 – 3 in. adapter weldment, adapter weldment 00566 – 3-1/2 in. adapter weldment, adapter weldment 00567 – 4 in. adapter weldment, adapter weldment 00610 – 5 in. adapter weldment |
| * Greenlee® may make improvements and/or changes in product specifications at any time, at its sole discretion, without notice or obligation, and further reserves the right to change or discontinue models. |
| Weight | 197.3127 lbs |
|---|
