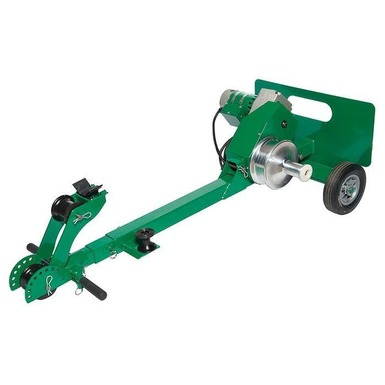

G3 TUGGER™ Cable Puller

6,507.66$

Add the desired quantity to the selected products.

Cable pulling 20 % faster
High-speed pulling for weights up to 454 kg (1,000 lb)
Continuous pulling load 25 % stronger
Durable motor designed for a better pulling load
Installation 3 fois plus rapide
No loose parts
Haute vitesse : 30 m/min (97 pi/min), basse vitesse : 12 m/min (41 pi/min)

Features

Sub-brand name	Tugger
Charge	Continuous rated load 544 kg (1,200 lb) Intermittent rated load 907 kg (2,000 lb)
Cable type	Electrical cable
Tension nominale	120 V
Vitesse	Pull rope: 13 mm (1/2 in.) polyester (minimum breaking strength 4,536 kg (10,000 lb)), 00444 – Foot pedal
Montage	Boom
Main pull rope specification	12.7 mm (1/2 in.) composite double braid rope with an average rated breaking strength of 4,536 kg (10,000 lb)
Type	Cable puller
Application	4/0 to 1,000 KCMIL pulling cable
Capacity	Speed (high) no load at 97 ft/min (30 m/min) 227 kg (500 lb) at 59 ft/min (18 m/min) 454 kg (1,000 lb) at 36 ft/min (11 m/min) Speed (low) no load at 41 ft/min (12 m/min) 454 kg (1,000 lb) at 21 ft/min (6 m/min) 907 kg (2,000 lb) (intermittent – 5 min on, 20 min off) at 13 ft/min (4 m/min)
Rated current	12 A

* Greenlee® may make improvements and/or changes in product specifications at any time, at its sole discretion, without notice or obligation, and further reserves the right to change or discontinue models.

Weight	59.4206 lbs

Categories 2,000 lb (907 kg) Pulling Devices, Cable Pullers, Cable Pulling & Switching, GREENLEE
