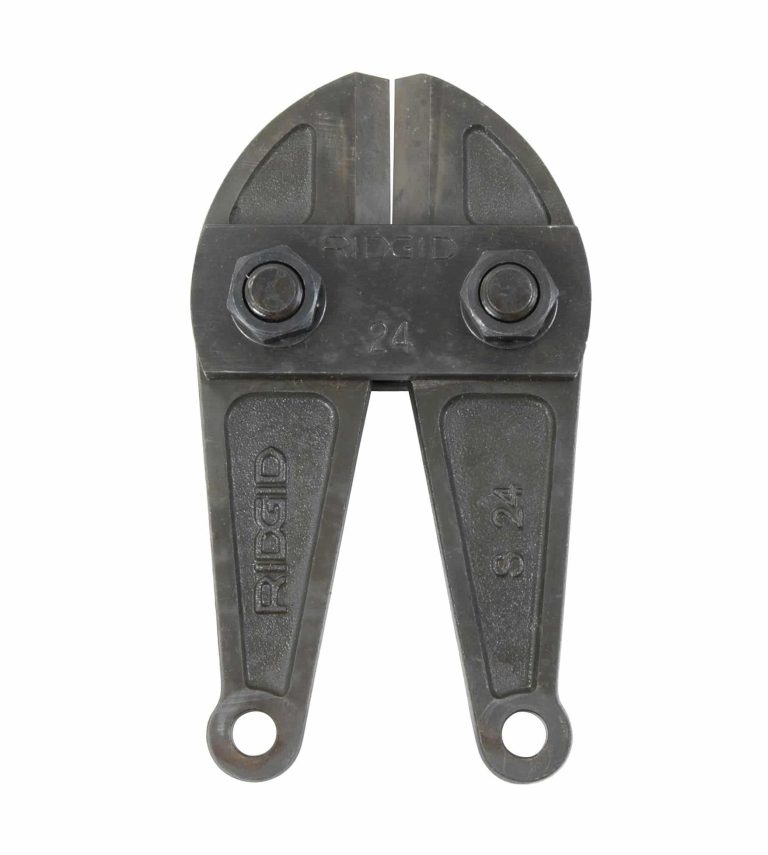

S24 Head Set (18373)92.20$
S24 Head Set (18373)
92.20$
Add the desired quantity to the selected products.
S24 Head Assembly
Ordering Information
| CATALOG NUMBER | MODEL NO. | CAPACITY / METALS SOFT (15RC)1 (IN.) | CAPACITY / METALS SOFT (15RC)1 (MM) | CAPACITY / METALS MEDIUM (31RC)2 (IN.) | CAPACITY / METALS MEDIUM (31RC)2 (MM) | CAPACITY / METALS HARD (42RC)3 (IN.) | CAPACITY / METALS HARD (42RC)3 (MM) | LENGTH OVERALL (IN.) | LENGTH OVERALL (MM) |
|---|---|---|---|---|---|---|---|---|---|
| 14213 | S14 | 5/16 | 7.9 | 1/4 | 6.4 | 3/16 | 4.8 | 15 | 379.0 |
| 14218 | S18 | 3/8 | 9.5 | 5/16 | 7.9 | 1/4 | 6.4 | 19 | 485.0 |
| 14223 | S24 | 7/16 | 11.0 | 3/8 | 9.5 | 5/16 | 7.9 | 24 | 610.0 |
| 14228 | S30 | 1/2 | 12.7 | 7/16 | 11.0 | 3/8 | 9.5 | 31 | 800.0 |
| 14233 | S36 | 9/16 | 14.3 | 1/2 | 12.7 | 7/16 | 11.0 | 38 | 958.0 |
| 14238 | S42 | 11/16 | 17.5 | 9/16 | 14.3 | 1/2 | 12.7 | 44 | 1.0, 115.0 |
| 18363 | S14 Head Assembly | 7/8 | 1.0 | ||||||
| 18368 | S18 Head Assembly | 1/4 | 1.5 | ||||||
| 18373 | S24 Head Assembly | 2 1/4 | 2.7 | ||||||
| 18378 | S30 Head Assembly | 8 7/8 | 4.0 | ||||||
| 18383 | S36 Head Assembly | 13 1/2 | 6.1 | ||||||
| 18388 | S42 Head Assembly | 18 1/4 | 8.3 |
| Weight | 2 lbs |
|---|---|
| Dimensions | 8.1 × 4 × 2.25 in |
| WEIGHT (LB.) | 2 1/4 |
| WEIGHT (KG) | 2.7 |
