Rigid line bending machine (1-1/4″ to 4″) without hydraulic pump16,994.32$

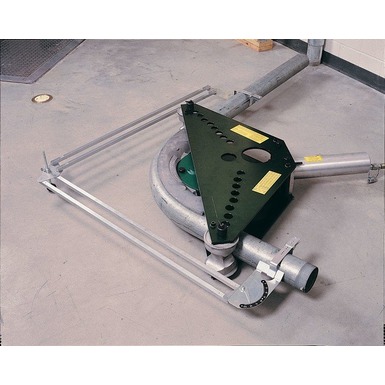

Rigid line bending machine (1-1/4″ to 4″) without hydraulic pump
16,994.32$
Add the desired quantity to the selected products.
-
- Durable, lightweight, and portable pin-assembled aluminum components
- Easy-to-use bending panel and cylinder stroke scale
- For elbows, offsets and stirrups
- The 884 and 885 benders perform 90° bends in one stroke on rigid pipes from 31.8 mm to 102 mm (1 1/4 in. to 4 in.)
- Optional shoes available for bending rigid PVC-coated pipes
- Optional 1802 bending table available to simplify operations
Characteristics
| Accessory | Bending table 1802 (optional) |
| Application | For 90° one-stroke bending of pipes from 31.8 mm to 102 mm (1 1/4 in. to 4 in.) (127 mm [5 in] with segment bending wedge) |
| Capacity | Rigid pipe from 31.8 mm to 102 mm (1 1/4 in. to 4 in.) |
| Medium bending radius | 184.1 mm to 508 mm (7 1/4 in. to 20 in.) (rigid) for 31.8 to 102 mm (2 1/2 in. to 4 in.) |
| Bending angle | 90° |
| Material | Aluminum components |
| Type | Rigid |
| Weight | 191,000 KG (421,000 LB) |
| *Greenlee® may make improvements and/or changes in product specifications at any time, in its sole discretion, without notice or obligation and further reserves the right to change or discontinue models. |
| Weight | 190.962 lbs |
|---|
