2″ Speed Punch®, SS Punch Original price was: 734.44$.642.64$Current price is: 642.64$.

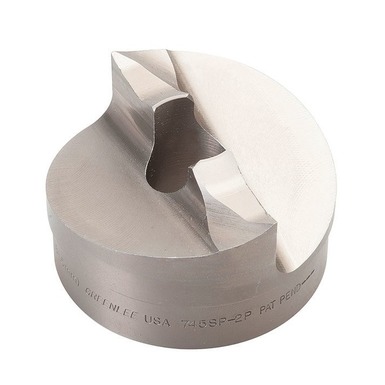

2″ Speed Punch®, SS Punch
Original price was: 734.44$.642.64$Current price is: 642.64$.
Add the desired quantity to the selected products.
Model Number : 783310016793
Material Number : 52066017
ROUND PUNCH, CONDUIT, SPEED PUNCH, STAINLESS STEEL 2 in. (61.5 mm). For punching conduit-size holes in stainless steel, mild steel, aluminum, fibreglass and plastic.
| Weight | 1.19 lbs |
|---|---|
| Dimensions | 3.7 × 3.6 × 3.8 in |
| Application | For punching conduit size holes in stainless steel, mild steel, aluminum, fiberglass, and plastic. |
| Capacity Mild Steel | Max: 10 gauge (3.0 mm). |
| Capacity Stainless Steel | Max: 10 gauge (3.0 mm). |
| Diameter | Actual hole size: 2.416'' (61.4 MM) |
| Draw Stud | Std. Draw Stud: 7212SP23 (3/4'' X 5.00'') |
| Draw Studs | Alt. Draw Stud (Long): 7212SP21 (3/4'' x 5.83'') – For use with 746 Hydraulic Ram. |
| Driver | Use with Greenlee Punch Drivers: 746 Hydraulic Ram & 767 Pump (or LS50L – Battery-Powered Driver up to max. 12 ga. stainless steel). |
| Material | Tool Steel |
| Minimum Pilot Hole | 7/8'' (22.2 mm) |
| Operation | Must be used with other SPEED PUNCH® System components. |
| Sub Brand | SPEED PUNCH® |
| Type | Knockout Punches |
| Weight | 1.20 lbs. (0.55 kg) |
