1″ Speed Punch®, SS Punch Original price was: 372.03$.325.53$Current price is: 325.53$.

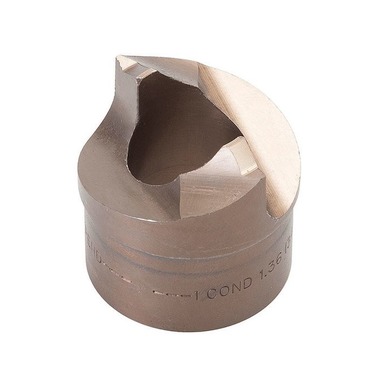

1″ Speed Punch®, SS Punch
Original price was: 372.03$.325.53$Current price is: 325.53$.
Add the desired quantity to the selected products.
Model Number : 783310016694
Material Number : 52066011
ROUND PUNCH, CONDUIT, SPEED PUNCH, STAINLESS STEEL 1 in. (34.6 mm). For punching conduit-size holes in stainless steel, mild steel, aluminum, fibreglass and plastic.
| Weight | 0.34 lbs |
|---|---|
| Dimensions | 3.7 × 3.7 × 3.8 in |
| Application | For punching conduit size holes in stainless steel, mild steel, aluminum, fiberglass, and plastic. |
| Capacity Mild Steel | Max: 10 gauge (3.0 mm). |
| Capacity Stainless Steel | Max: 10 gauge (3.0 mm). |
| Diameter | Actual hole size: 1.362'' (34.6 MM) |
| Draw Stud | Std. Draw Stud: 7212SP23 (3/4'' X 5.00''). |
| Draw Studs | Alt. Draw Stud (Long): 7212SP21 (3/4'' x 5.83'') – For use with 746 Hydraulic Ram. |
| Driver | Use with Greenlee Punch Drivers: 746 Hydraulic Ram & 767 Pump (or LS50L – Battery-Powered Driver up to max. 12 ga. stainless steel). |
| Material | Tool Steel |
| Minimum Pilot Hole | 7/8'' (22.2 mm) |
| Operation | Must be used with other SPEEDPUNCH™ System components. |
| Sub Brand | SPEED PUNCH™ |
| Type | Knockout Punches |
| Weight | 0.35 lbs. (0.16 kg) |
