6001 6000LB Cable Puller Original price was: 12,757.32$.11,162.66$Current price is: 11,162.66$.

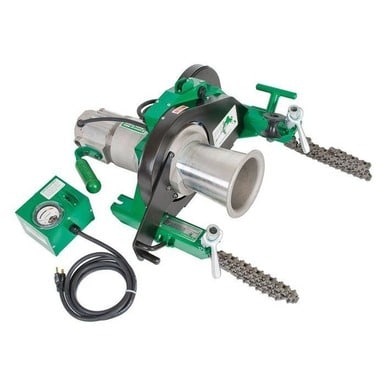

6001 6000LB Cable Puller
Original price was: 12,757.32$.11,162.66$Current price is: 11,162.66$.
Add the desired quantity to the selected products.
Model Number : 783310296270
Material Number : 50296272
Model Number : 783310296270
Material Number : 50296272
| Weight | 119 lbs |
|---|---|
| Dimensions | 25 × 23 × 15 in |
| Sub Brand | Super Tugger |
| Load | 6500.000 LB (28.900 KN) Maximum, 4500.000 LB (20.000 KN) Continuous |
| Cable Type | Electrical cable |
| Voltage Rating | 125 Volts |
| Mounting | Floor mount / Chain mount |
| Prime Mover Specification | Double-Braided Composite Rope 3/4 IN |
| Includes | Force Gauge And Vise Chains |
| Standard | Super Tugger Cable Puller Power Unit, Includes force gauge and vise chains |
| Type | Puller Assembly |
| Application | Electrical Cable pull |
| Capacity | No load : 5 m/min (16.5 ft/min) 8900 newtons (2000 lb) : 3.4 m/min (11 ft/min) 17.8 kN (4000 lb) : 2.3 m/min (7.5 ft/min) |
| Drive Motor | 1-1/2 hp, 120 VAC, 16 Hz, 20 Amp |
| Pulling Force | 6500.000 LB (28.900 KN) Maximum, 4500.000 LB (20.000 KN) Continuous |
| Pulling Rope | 3/4 IN (19.100 MM) Double-Braided Composite, Rated At 26000 LB (115.600 KN) |
| Pulling Speeds | 16.5 FTPM At No Load, (8.800 KN) – 11 (3.4) At 2000 LB, (17.900 KN) – 7.5 (2.3) At 4000 LB, (26.700 KN) – 6 (1.8) At 6000 LB |
| Amperage Rating | 15 Amp |
