535A, 120 V. NPT 1/2-2″ Automatic Chuck Machine (91322)11,228.61$
535A, 120 V. NPT 1/2-2″ Automatic Chuck Machine (91322)
11,228.61$
Add the desired quantity to the selected products.

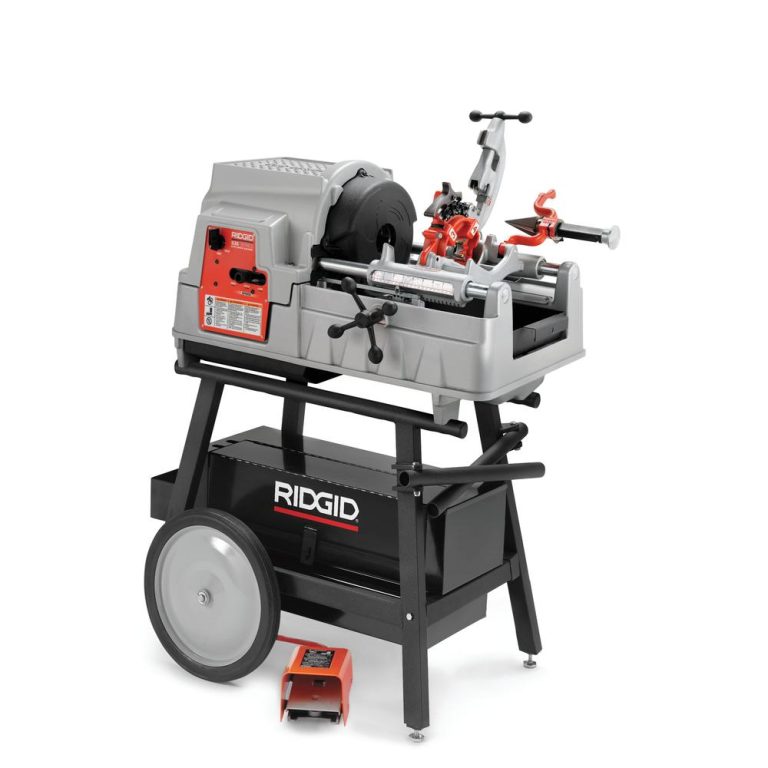

1/2″ – 2″ NPT Automatic Chuck Machine
The Model 535A maintains the ruggedness of the industry workhorse while adding features that make the threading operation more productive. A large chip tray and oil reservoir make the 535A ideal for longer uninterrupted threading. The 535 features a high clearance carriage that makes the threading operation easier and a generous top cover area that is ideal for keeping tools and work related materials handy. The 535A is designed around maximum uptime with the upgrades that matter most to the pipe working professional. Users also benefit from the part commonality between the 535, the 535A Automatic and other RIDGID® equipment.
Ordering Information
| CATALOG NUMBER | MODEL NO. | DESCRIPTION | DIE HEAD | RPM | VOLTAGE (V) | FREQUENCY (HZ) | PHASE | MOTOR TYPE | AMP DRAW (A) | POWER | WEIGHT (LB.) | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 84097 | 535A | 1/2" – 2" NPT Automatic Chuck Machine | 811A | 16/46/58 | 120 | 60 | 1 | Induction | 18 | – | 350 | 159 |
| 91142 | 535A | Automatic Chuck Machine Only – No Die Head or Dies | 16/46/58 | 120 | 60 | 1 | Induction | 18 | – | 340 | 155 | |
| 91322 | 535A | 1/2" – 2" NPT Automatic Chuck Machine | 816/817 | 16/46/58 | 120 | 60 | 1 | Induction | 18 | – | 360 | 163 |
| 42365 | 341 | 341 Reamer Assy | 6 3/4 | 3.2 | ||||||||
| 42390 | 820 | 820 Cutter Assy | 8 1/2 | 3.9 | ||||||||
| 92457 | 100A | 100A Universal Leg & Tray Stand | 75 | 34.5 | ||||||||
| 92462 | 150A | 150A Universal Wheel & Tray Stand | 103 | 46.7 | ||||||||
| 92467 | 200A | 200A Universal Wheel & Cabinet Stand | 104 | 47.2 | ||||||||
| 51005 | 819 | 819 Nipple Chuck Complete, 1/2" – 2" NPT | 10 1/2 | 4.8 | ||||||||
| 35867 | 839 | 839 Adapter Kit for Model 1822/535A Machine | 16 1/2 | 7.5 | ||||||||
| 97882 | 535A | Kit 141 on 535 Auto Chuck with High-Clearance Carriage | 12 | 5.5 | ||||||||
| 42485 | 4U | 4V Die Head Rack (4 Heads) | 8 1/2 | 3.9 | ||||||||
| 42490 | 6U | 6V Die Head Rack (6 Heads) | 12 1/2 | 5.7 | ||||||||
| 97065 | 811A | 811A 1/8” – 2” NPT Die Head, Quick-Opening, RH | 13 | 5.7 | ||||||||
| 97075 | 815A | 815A 1/8" – 2" NPT Die Head, Self-Opening, RH | 13 | 5.9 | ||||||||
| 23282 | 842 | 842 1/8" – 2" NPT QO Universal Die Head | 12 1/2 | 5.7 | ||||||||
| 97070 | 811A | 811A 1/8” – 2” BSPT Die Head, Quick-Opening, RH | 12 1/2 | 5.7 | ||||||||
| 97080 | 815A | 815A 1/8" – 2" BSPT Die Head, Self-Opening, RH | 13 | 5.9 | ||||||||
| 97045 | 531 | 531 1/4"-1"Bolt Die Head Quick-Open R.H./L.H. | 7 1/2 | 3.4 | ||||||||
| 97050 | 532 | 532 1-1/8"-2"Bolt Die Head Quick-Open R.H./L.H. | 9 | 4.1 | ||||||||
| 84537 | 816 | 816 1/8” – 3/4” NPT Die Head, Semi-Automatic, RH | 13 | 5.9 | ||||||||
| 84532 | 817 | 817 1” – 2” NPT Die Head, Semi-Automatic, RH | 13 | 5.9 | ||||||||
| 23297 | 856 | 856 1/8" – 2" BSPT SO Universal Die Head | 12 1/2 | 5.7 |
| Model no. | 535A |
|---|---|
| Supply voltage | 120 V |
| Weight | 370 lbs |
| MODEL NO. | 535A |
| DIE HEAD | 816/817 |
| RPM | 16/46/58 |
| VOLTAGE (V) | 120 |
| FREQUENCY (HZ) | 60 |
| PHASE | 1 |
| MOTOR TYPE | Induction |
| AMP DRAW (A) | 18 |
| WEIGHT (LB.) | 360 |
| WEIGHT (KG) | 163 |
