Micro Infrared Thermometer IR-200 (36798)

184.01$

Add the desired quantity to the selected products.

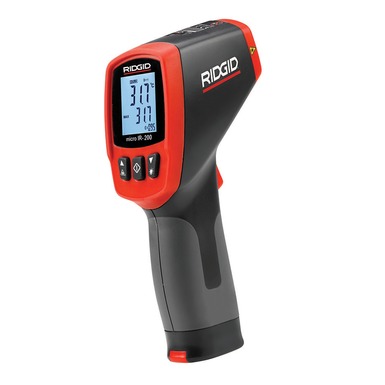

The RIDGID® micro IR-200 non-contact infrared thermometer provides simple, fast, and accurate surface temperature readings at the touch of a button. Simply pull the trigger and aim the ultra-precise dual Class II laser at the surface to be measured. The IR-200 microphone immediately displays the temperature measurement on a clear, easy-to-read backlit LCD display. In addition to its many uses, this rugged and compact instrument allows professional technicians to diagnose heating and ventilation problems, preemptively monitor motors and electrical systems, troubleshoot steam traps, and quickly check fuses and circuit breakers for overheating, all without contact.

Characteristics

  • Ultra-precise dual Class II lasers easily identify the area to be measured.
  • A distance-to-point ratio of 30:1 increases the accuracy of measurements over longer distances.
  • Adjustable emissivity to accurately measure the temperature of virtually any surface.
  • Visual, audible and low alarms activate quickly when temperatures fall outside the set ranges.
  • Its bright backlit display can be activated in low-light areas.
  • Its tripod mount allows for accurate repetitive temperature measurements.

Characteristics

Temperature Range -58° to 2,192°F (-50° to 1,200°C)
Measurement accuracy -50°C to 20°C ±2.5°C (58°F to 68°F ±4.5°F); 20°C to 1,200°C, ±1.0°C (68°F to 2,192°F, ±1.8°F)
Distance/point ratio 30:1
Response Time < 150 ms
Emissivity Adjustable, 0.10 – 1.00
Temperature display Current Temperature, MAX Temperature
Units of Measurement Fahrenheit, Celsius
Power Source Battery (1 x 9 V) included

Ordering Information

CATALOG NUMBER DESCRIPTION WEIGHT CERTIFICATIONS (LB.) CERTIFICATIONS (KG)
36798 micro IR-200 Non-Contact Infrared Thermometer 0.5 0.2 EMC, FCC, FDA
Weight 1 lbs
Dimensions 9.2 × 5.2 × 3.1 in
WEIGHT

0.5
CERTIFICATIONS (LB.)

0.2
CERTIFICATIONS (KG)

EMC, FCC, FDA
Catalog number 36798 Categories , ,
