535. Impact Chuck Machine Only – Without Die Head & Die 36 RPM 115V (96497)8,658.03$
535. Impact Chuck Machine Only – Without Die Head & Die 36 RPM 115V (96497)
8,658.03$
Add the desired quantity to the selected products.

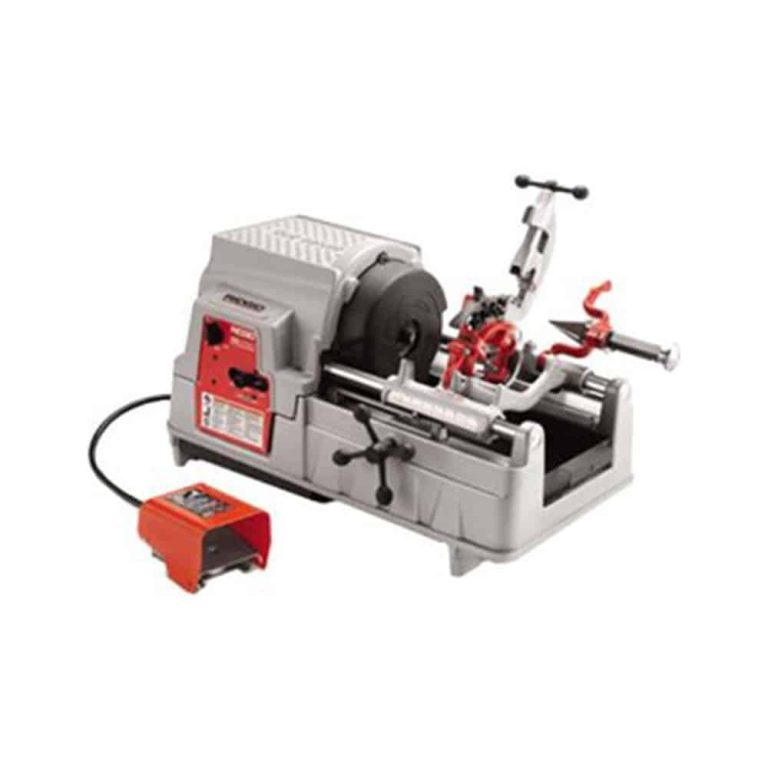

Hammer Chuck Machine Only – No Die Head or Dies
The Model 535 threading machine pipe threader maintains the ruggedness of the industry workhorse while adding the features that makes the threading operation more productive. A large chip tray and oil reservoir makes the 535 ideal for longer uninterrupted threading. The 535 is designed around maximum uptime with the upgrades that matter most to the pipe working professional. Users also benefit from the part commonality between the 535, the 535A Automatic and other RIDGID® equipment.
Ordering Information
| CATALOG NUMBER | MODEL NO. | DESCRIPTION | DIE HEAD | RPM | VOLTAGE (V) | FREQUENCY (HZ) | PHASE | MOTOR TYPE | AMP DRAW (A) | POWER | WEIGHT (LB.) | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 93287 | 535 | 1/2" – 2" NPT Hammer Chuck Machine | 811A | 36 | 115 | 50 – 60 | 1 | Universal | 15 | – | 260.0 | 117.9 |
| 96497 | 535 | Hammer Chuck Machine Only – No Die Head or Dies | – | 36 | 115 | 50 – 60 | 1 | Universal | 15 | – | 245.0 | 111.1 |
| 96502 | 535 | 1/2" – 2" NPT Hammer Chuck Machine | 811A | 54 | 115 | 50 – 60 | 1 | Universal | 20 | – | 260.0 | 117.9 |
| 96507 | 535 | 1/2" – 2" NPT Hammer Chuck Machine | 811A | 36 | 230 | 50 – 60 | 1 | Universal | 7.5 | – | 260.0 | 117.9 |
| 96512 | 535 | 1/2" – 2" BSPT Hammer Chuck Machine | 811A | 36 | 230 | 50 – 60 | 1 | Universal | 7.5 | – | 260.0 | 117.9 |
| 16723 | Drive Link Assembly for High Clearance Carriage | 12 | 5.5 | |||||||||
| 42405 | 844 | Drive Bar for Geared Threaders | 5 3/4 | 2.6 | ||||||||
| 42415 | 768 | 141 Drive Link Assembly | 2 1/2 | 1.1 | ||||||||
| 51005 | 819 | 819 Nipple Chuck Complete, 1/2" – 2" NPT | 10 1/2 | 4.8 | ||||||||
| 84537 | 816 | 816 1/8” – 3/4” NPT Die Head, Semi-Automatic, RH | 13 | 5.9 | ||||||||
| 42365 | 341 | 341 Reamer Assy | 6 3/4 | 3.2 | ||||||||
| 42390 | 820 | 820 Cutter Assy | 8 1/2 | 3.9 | ||||||||
| 58007 | Machine Stand Adapter Bracket (for Machines Made Prior to 1996) | 17 | 7.7 | |||||||||
| 92457 | 100A | 100A Universal Leg & Tray Stand | 75 | 34.5 | ||||||||
| 92462 | 150A | 150A Universal Wheel & Tray Stand | 103 | 46.7 | ||||||||
| 92467 | 200A | 200A Universal Wheel & Cabinet Stand | 104 | 47.2 | ||||||||
| 96517 | MJ-1 | MJ-1 535M Left Hand Threading Kit | 3 1/2 | 1.6 | ||||||||
| 97365 | Jaw Insert Set f/ PL Coated Pipe (Pack of 3) | 1/2 | 0.2 | |||||||||
| 84532 | 817 | 817 1” – 2” NPT Die Head, Semi-Automatic, RH | 13 | 5.9 |
| Model no. | 535 |
|---|---|
| Supply voltage | 115 V |
| Weight | 267 lbs |
| Dimensions | 46 × 25 × 27 in |
| MODEL NO. | 535 |
| RPM | 36 |
| VOLTAGE (V) | 115 |
| FREQUENCY (HZ) | 50 – 60 |
| PHASE | 1 |
| MOTOR TYPE | Universal |
| AMP DRAW (A) | 15 |
| WEIGHT (LB.) | 245.0 |
| WEIGHT (KG) | 111.1 |
