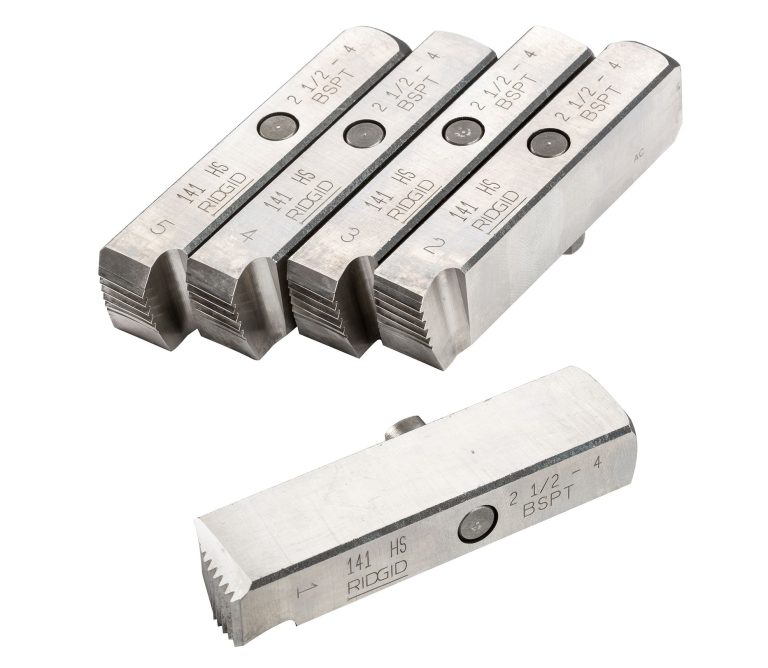

High Speed Right Side (66625)

533.73$

Add the desired quantity to the selected products.

DIES, 141 BSPT HS

Ordering Information

CATALOG NUMBER MODEL NO. DESCRIPTION CAPACITY NOMINAL PIPE SIZE (IN.) CAPACITY NOMINAL PIPE SIZE (MM) WEIGHT (LB.) WEIGHT (KG)
36620 141 141 2-1/2" – 4" Receding Geared Threader 2 1/2 – 4 62 – 100 93 42.3
65380 141 THREADER, 141 BSPT 2 1/2 – 4 62 – 100 93 42.3
36630 161 161 4" – 6" Receding Geared Threader 4 – 6 100 – 150 158 71.8
39380 D-1440 D-1440 Ratchet and Handle – – 9 1/2 4.3
96725 – Metal Carrying Case for 141 Geared Threaders – – 17 7.7
42505 46 46 23" – 33" Adjustable Pipe Support 23 10.4
61122 840A SHAFT, 840A UNIVERSAL 31 14.1
19366 758 758 Loop 1/4 0.6
40005 346 346 Support Arms 10 1/2 4.8
42405 844 Drive Bar for Geared Threaders 5 3/4 2.6
42415 768 141 Drive Link Assembly 2 1/2 1.1
97882 535A Kit 141 on 535 Auto Chuck with High-Clearance Carriage * 12 5.5
16723 Drive Link Assembly for High Clearance Carriage ** 12 5.5
54587 343 343 Mounting Kit (w/ Drive Bar) for 300 Compact and 1233 Threading Machine 9 4.1
38120 High-Speed RH NPT 2 1/2 – 4 –
38125 H.S. For Cast Iron RH NPT 2 1/2 – 4 –
38130 H.S. For PVC RH NPT 2 1/2 – 4 –
38140 H.S. 37 1/2 " Bevel Bevel 2 1/2 – 4 –
66625 DIES, 141 BSPT HS BSPT 2 1/2 – 4 –
70640 DIES, 141 NPT HS SS NPT 2 1/2 – 4 –
70645 DIES, 141 BSPT HS SS BSPT 2 1/2 – 4 –
38155 High-Speed RH NPT 4 – 6 –
66620 High-Speed RH BSPT 4 – 6 –
70655 DIES, 161 NPT HS SS NPT 4 – 6 –
Weight 2.55 lbs
Dimensions 4 × 3.8 × 1.7 in
THREAD TYPE

BSPT
PIPE THREADING CAPACITY (IN.)

2 1/2 – 4
Catalog number 66625 Categories , , ,
