6,815.82$
Rodder Machine, includes: – B-3542 Rod Driver – A-2704 Tool Driver – A-3567 Drive Pin – R-0 Rod Turner – A-4558 Torque Adapter – A-12 Coupling Pin Key – A-1 Left-Hand RIDGID Drain Cleaning Mitt – A-2 Right-Hand RIDGID Drain Cleaning Mitt

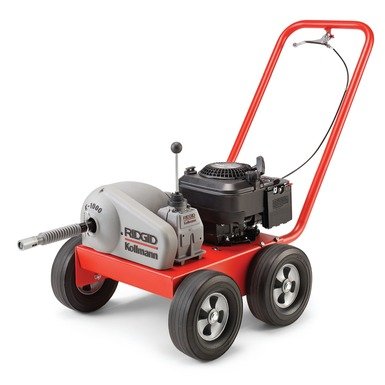

The K-1000 Rodder Machine is a rugged, compact drain cleaning machine suited for straight main line work in municipalities, universities, institutions and industry. Drives sectional sewer rods through long, straight runs of larger diameter pipe – up to 500 feet (150 m). Equipped with a 6 HP gasoline engine and forward/reverse transmission. Rod rotates at 133 RPM in forward and reverse at full throttle.
| CATALOG NUMBER | MODEL NO. | DESCRIPTION | WEIGHT (LB.) | WEIGHT (KG) |
|---|---|---|---|---|
| 59175 | K-1000 | Rodder Machine, includes: – B-3542 Rod Driver – A-2704 Tool Driver – A-3567 Drive Pin – R-0 Rod Turner – A-4558 Torque Adapter – A-12 Coupling Pin Key – A-1 Left-Hand RIDGID Drain Cleaning Mitt – A-2 Right-Hand RIDGID Drain Cleaning Mitt | 160 | 75 |
| 84295 | K-1000 | Rodder Machine, same as above, plus: – 20 Sections of A-2475, 5⁄16" (8 mm) Rod, Total of 100' (30 m) – T-300 Spear Head Cutter – T-317 Auger – T-326 Pick-Up Tool | 210 | 95 |
| 60355 | A-2474 | 3' (0,9 m) Solid Sectional Rod, Includes: R-1 Male and R-2 Female Couplings | 1/4 | 0.6 |
| 60360 | A-2475 | 5' (1,5 m) Solid Sectional Rod, Includes: R-1 Male and R-2 Female Couplings | 1 3/4 | 0.8 |
| 60365 | A-2476 | 10' (3,0 m) Solid Sectional Rod, Includes: R-1 Male and R-2 Female Couplings | 3 | 1.4 |
| 59835 | K-10 | Complete Set of Quick- Connect Rod Couplings: One Each R-1 and R-2 | 3/8 | 0.20 |
| 59560 | R-1 | Male Rod Coupling | 1/4 | 0.10 |
| 59555 | R-2 | Female Rod Coupling | 1/8 | 0.10 |
| 61875 | R-7 | Male Tool Coupling, connects Tool Adapter to Rodding Tool | 1/2 | 0.20 |
| 61885 | R-8 | Female Tool Coupling, connects Tool to Tool Adapter | 1/2 | 0.20 |
| 60700 | A-2704 | Tool Adapter, includes R-2 and R-7 Couplings | 2 1/4 | 1.00 |
| 62170 | B-3542 | Rod Holder | 3/8 | 1.50 |
| 62815 | R-0 | Rod Turner, used to manually turn Rods in short runs | 3 1/4 | 1.50 |
| 59205 | A-1 | Left-Hand RIDGID Drain Cleaning Mitt | 1/2 | 0.20 |
| 59295 | A-2 | Right-Hand RIDGID Drain Cleaning Mitt | 1/2 | 0.20 |
| 59360 | A-3 | Tool Box | 5 | 2.30 |
| 59225 | A-12 | 1/2" Cable Pin Key | 1/2 | 0.20 |
| 62045 | T-300 | Spear Head | 1 7/8 | 0.80 |
| 62055 | T-302 | Round Stock Corkscrew, 2" (50 mm) | 1/2 | 0.70 |
| 62060 | T-303 | Round Stock Corkscrew, 21⁄2" (65 mm) | 1 3/4 | 0.80 |
| 62065 | T-304 | Round Stock Corkscrew, 3" (75 mm) | 1 3/4 | 0.80 |
| 62080 | T-307 | Double Corkscrew, 4" (110 mm) | 2 1/2 | 1.10 |
| 62095 | T-310 | Square Stock Corkscrew, 4" (110 mm) | 2 1/2 | 1.10 |
| 62105 | T-312 | Square Stock Corkscrew, 6" (150 mm) | 3/4 | 1.70 |
| 62110 | T-316 | Auger, 3" (75 mm) | 3 | 1.40 |
| 62115 | T-317 | Auger, 4" (110 mm) | 3 1/2 | 1.50 |
| 62390 | T-321 | Auger, 10" (250 mm) | 9 1/2 | 4.30 |
| 62140 | T-326 | Pick-Up Tool | 1 | 0.50 |
| 61800 | T-2 | Heavy-Duty Straight Auger | 1 | 0.5 |
| 61790 | T-4 | Heavy-Duty Funnel Auger | 1 | 0.5 |
| 63200 | T-7 | Hook Auger | 1/2 | 0.7 |
| 61960 | T-16 | Spiral Bar Cutter, 4" (110 mm) | 1 | 0.5 |
| 63085 | T-23 | Spiral Sawtooth Cutter, 4" (110 mm) | 1/2 | 0.2 |
| 59765 | T-24 | 4-Blade Cutter, 21⁄2" (65 mm) | 1/2 | 0.2 |
| 59770 | T-25 | 4-Blade Cutter, 3 1⁄2" (89 mm) | 3/4 | 0.3 |
| 59775 | T-26 | 4-Blade Cutter, 4 1⁄2" (114 mm) | 1/4 | 0.6 |
| Model no. | K-1000 |
|---|---|
| Weight | 183 lbs |
| Dimensions | 33.8 × 28 × 32 in |
| MODEL NO. | K-1000 |
| WEIGHT (LB.) | 160 |
| WEIGHT (KG) | 75 |
K-1000. Drain Cleaner Includes:– Rod Guide B-3542 – Tool Guide A-2704 – Guide Pin A-3567 – Rod Turner R-0 – End Adapter A-4558 – Decoupling Wrench A-12 – RIGID Glove (Drain Cleaning) A-1 Left Hand – RIGID Glove (Drain Cleaning) A-2 Right Hand (59175)
