Voltmètre et comparateur de phase sans fil à double affichage Double Vision® 5 V-43 kV, Kit aérien simple, Base 2
Voltmètre et comparateur de phase sans fil à double affichage Double Vision® 5 V-43 kV, Kit aérien simple, Base 3
Voltmètre et comparateur de phase sans fil à double affichage Double Vision® 5 V-43 kV, Kit aérien simple-UG 2 2

Double Vision® Dual Display Wireless Phasing Meter 5V-43kV, OH/UG Single Kit 2

4,252.97$

Add the desired quantity to the selected products.

  • Measures voltage from 5V to 43kV line-to-line
  • Can be used individually as voltmeters or together for phasing operations up to 100 ft. (30m) apart
  • Clear indication of phase angle
  • Two LED displays are automatically synchronized during phasing operations
  • Versatile for overhead and underground applications
  • Capacitive Test Point and Peak Hold modes

Specifications

Sub-brand HDE
Type Voltmeter
Model DDPM-40
Nominal Voltage line-to-line 5 V-43 kV, line-to-ground 5 V-25 kV
Accuracy Within 1 % of measured value, +/- 3 total (line-to-ground and line-to-line measurements)
Display LED display with 0,7 in digit height Displays 3 digits
Operating temperature -20 °F to +120 °F (-29 °C to +49 °C)
Dimensions 14″ (L) x 4,1″ (H) x 4,6″ (W) (36 cm x 10 cm x 12 cm) without probes
Rated frequency 25-1 000 Hz CA/CC
Phase indication Phase angle

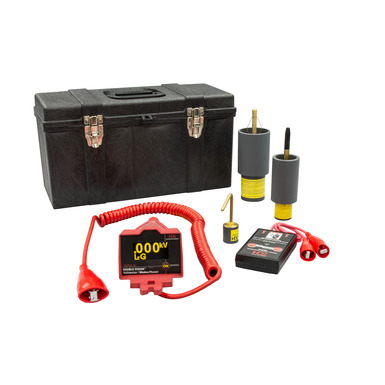

Includes DDPM-40, (1) 025-OLPS-5, ASP-15/25 15 kV/25 kV UG socket probe, ASP-35U 35 kV UG socket probe, PT-5000B Proof Tester, CS-DDVM carrying case
* Greenlee® may make improvements and/or changes in product specifications at any time, at its sole discretion, without notice or obligation, and further reserves the right to change or discontinue models.

Weight 0.12 lbs
Catalog number DDPM-40S/K03 Categories , , , ,
