2″ Speed Punch®, SS Die Original price was: 203.15$.177.76$Current price is: 177.76$.

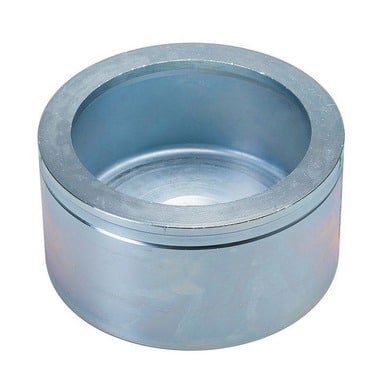

2″ Speed Punch®, SS Die
Original price was: 203.15$.177.76$Current price is: 177.76$.
Add the desired quantity to the selected products.
Model Number : 783310016816
Material Number : 52066018
DIE, COND., SPEED PUNCH, STAINLESS STEEL 2 in. (61.5 mm). For punching conduit-size holes in stainless steel, mild steel, aluminum, fibreglass and plastic.
| Weight | 1.71 lbs |
|---|---|
| Dimensions | 3.75 × 3.75 × 3.75 in |
| Application | For punching conduit size holes in stainless steel, mild steel, aluminum, fiberglass, and plastic. |
| Capacity Mild Steel | Max: 10 gauge (3.0 mm). |
| Capacity Stainless Steel | Max: 10 gauge (3.0 mm). |
| Diameter | Actual hole size: 2.416'' (61.4 MM) |
| Draw Stud | Std. Draw Stud: 7212SP23 (3/4'' X 5.00''). |
| Draw Studs | Alt. Draw Stud (Long): 7212SP21 (3/4'' x 5.83'') – For use with 746 Hydraulic Ram. |
| Driver | Use with Greenlee Punch Drivers: 746 Hydraulic Ram & 767 Pump (or LS50L – Battery-Powered Driver up to max. 12 ga. stainless steel). |
| Material | Carbon-Alloy Steel, Zinc Plated |
| Minimum Pilot Hole | 7/8'' (22.2 mm) |
| Operation | Must be used with other SPEED PUNCH® System components. |
| Sub Brand | SPEED PUNCH® |
| Type | Knockout Punches |
| Weight | 1.70 lbs. (0.77 kg) |
