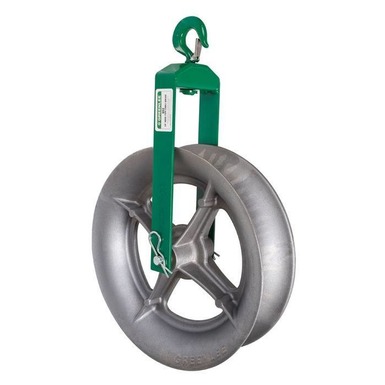

18″ Hook-Type Sheave637.75$
18″ Hook-Type Sheave
637.75$
Add the desired quantity to the selected products.
- Strong, welded steel frames Forged steel closure-type hooks with 1 IN (25.4 mm) opening
- 5 IN (127 mm) wide aluminum alloy sheaves with self-lubricating bearings
- Select a sheave with a maximum rated capacity that meets or exceeds the cable puller’s maximum pulling force
Specifications
| Keyway | Aucune |
| Outside diameter | 269,7 mm (10,62 in) |
| Spread diameter | Between 168,1 mm (6,62 in) and 269,7 mm (10,62 in) |
| Gorge | R 50,8 mm (2 in) |
| Material | 304,8 mm (12 in) diameter hook sheave with a minimum radius of 84,1 mm (3-5/16 in) |
| Includes | Sheave pin 16797 UPC 16797, sheave pin clip 50302 UPC 50302 (2), sheave 15358 UPC 15358, sheave bushing 16798 UPC 16798 (2), yoke frame 16800 UPC 16800 |
| Standard | 304,8 mm (12 in) HOOK-TYPE CABLE SHEAVE |
| Type | Poulie |
| Application | Electrical cable pulling |
| Capacity | 17,800 kN (4 000 lb) |
| * Greenlee® may make improvements and/or changes in product specifications at any time, at its sole discretion, without notice or obligation, and further reserves the right to change or discontinue models. |
| Weight | 31.4 lbs |
|---|---|
| Dimensions | 27 × 19 × 8 in |
| Keyway | None |
| Outside Diameter | 18" |
| Pitch Diameter | Between 14" and 18" |
| Groove | R3.00" |
| Material | 5 IN (127 mm) wide aluminum alloy sheaves with self-lubricating bearings |
| Includes | 16797 UPC 16797 Sheave Pin, 50302 UPC 50302 Sheave Pin Clip(2), 15363 UPC 15363 Sheave, 16798 UPC 16798 Sheave Bushing(2), 16801 UPC 16801 Yoke Frame |
| Standard | SHEAVE-CABLE 18" HOOK TYPE |
| Type | Sheave Assembly |
| Application | Electrical Cable pull |
| Capacity | 4000.000 LB (17.800 KN) |
