1224 High Speed BSPT Dies for PVC (32242)396.90$
1224 High Speed BSPT Dies for PVC (32242)
396.90$
British BSPT thread
This tool cuts or fits BSPT (British Standard Pipe Taper) threads. The North American standard is NPT. The two are not interchangeable.
Add the desired quantity to the selected products.

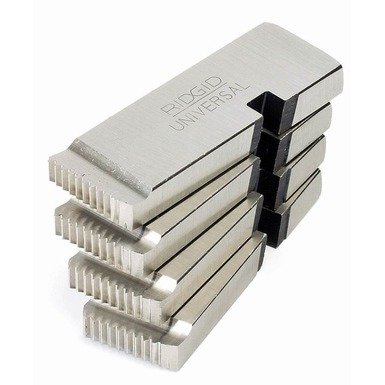

1224 H.S. Dies BSPT for PVC
The Model 1224 Pipe Threader threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C.
Ordering Information
| CATALOG NUMBER | MODEL NO. | DESCRIPTION | DIE HEAD | RPM | VOLTAGE (V) | FREQUENCY (HZ) | PHASE | MOTOR TYPE | AMP DRAW (A) | POWER | WEIGHT (LB.) | WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 26092 | 1224 | 1/4" – 4" NPT Hammer Chuck Machine | 711/714 | 36/12 | 120 | 60 | 1 | Induction | 15 | – | 509.0 | 231.0 |
| 26097 | 1224 | 1/4" – 4" NPT Hammer Chuck Machine | 711/714 | 36/12 | 230 | 60 | 1 | Induction | 8 | – | 509.0 | 231.0 |
| 26112 | 1224 | 1/4" – 4" BSPT Hammer Chuck Machine | 911/914 | 36/12 | 115 | 50 | 1 | Induction | 15 | – | 463.0 | 210.0 |
| 26122 | 1224 | 1/4" – 4" BSPT Hammer Chuck Machine | 911/914 | 36/12 | 230 | 60 | 1 | Induction | 8 | – | 509.0 | 231.0 |
| 26127 | 1224 | 1/4" – 4" BSPT Hammer Chuck Machine | 911/914 | 36/12 | 120 | 60 | 1 | Induction | 15 | – | 509.0 | 231.0 |
| 29858 | 1224 | THREADING MACH 1224 220V NPT | – | – | – | – | – | – | – | – | 509.0 | 231.0 |
| 29863 | THREADING MACH,1224 220V BSPT | – | – | – | – | – | – | – | – | – | 231.0 | |
| 22563 | – | Steel Cabinet (200A) | 42 | 19.30 | ||||||||
| 92457 | 100A | 100A Universal Leg & Tray Stand | 75 | 34.50 | ||||||||
| 92462 | 150A | 150A Universal Wheel & Tray Stand | 103 | 46.70 | ||||||||
| 92467 | 200A | 200A Universal Wheel & Cabinet Stand | 104 | 47.20 | ||||||||
| 26132 | 711 | 711 SO Universal Right Hand Dies | 1/4 – 2 | 6.4 – 50.8 | 12.2 | 5.6 | ||||||
| 26137 | 911 | 911 1/4" – 2" BSPT 1224 Die Head, Self-Opening, RH | 1/4 – 2 | 6.4 – 50.8 | 12.2 | 5.6 | ||||||
| 26142 | 713 | 713 1/4" – 2" NPT 1224 Die Head, Quick-Opening, LH | 1/4 – 2 | 64.0 – 102.0 | 12.2 | 5.6 | ||||||
| 26147 | 913 | 913 1/4" – 2" BSPT 1224 Die Head, Quick-Opening, LH | 1/4 – 2 | 6.4 – 50.8 | 12.2 | 5.6 | ||||||
| 26152 | 714 | 714 SO Receding Right Hand Dies | 2 1/2 – 4 | 6.4 – 50.8 | 30.0 | 13.6 | ||||||
| 26157 | 914 | 914 1/4" – 2" BSPT 1224 Die Head, Receding Self-Opening, RH | 2 1/2 – 4 | 64.0 – 102.0 | 30.0 | 13.6 | ||||||
| 26162 | 541 | 541 1/4" – 1" Bolt 1224 Die Head, Quick-Opening, RH/LH | 1/4 – 1 | 6.4 – 25.4 | 7.5 | 3.4 | ||||||
| 26167 | 542 | 542 1-1/8" – 2" Bolt 1224 Die Head, Quick-Opening, RH/LH | 1/8 – 2 | 29.0 – 50.8 | 9.2 | 4.2 | ||||||
| 55447 | 725 | 725 2-1/2” – 4” Cut Grooving Die Head | 2 1/2 – 4 | 64.0 – 102.0 | 30.0 | 13.6 | ||||||
| 55452 | 766 | 766 Blade Type Cutter | 3/4 – 4 | 64.0 – 88.9 | 21.0 | 9.5 | ||||||
| 57492 | – | 4" Grooving Die Set * | – | – | 2.2 | 1.0 | ||||||
| 57497 | 2 1/2"-3 1/2" Grooving Die Set * | 2 1/2 – 3 1/2 | 102.0 | 2.2 | 1.0 | |||||||
| 57502 | – | 4" Grooving Bit Only * | – | – | – | – | ||||||
| 57507 | 2 1/2"-3 1/2" Grooving Bit only * | – | 19.0 – 102.0 | – | – | |||||||
| 58712 | – | Tool Bit | – | – | – | – | ||||||
| 26192 | Dies. 1224 2 – 1/2" – 4 NPT HS | 2 1/2 – 4 | 62.0 – 100.0 | 2.2 | 1.0 | |||||||
| 33642 | 1224 H.S. Dies BSPT | 2 1/2 – 4 | 62.0 – 100.0 | 2.2 | 1.0 | |||||||
| 31827 | 1224 H.S. NPT Dies for Plastic-Coated Pipe | 2 1/2 – 4 | 62.0 – 100.0 | 2.2 | 1.0 | |||||||
| 31832 | 1224 H.S. BSPT Dies for Plastic-Coated Pipe | 2 1/2 – 4 | 62.0 – 100.0 | 2.2 | 1.0 | |||||||
| 32237 | 1224 H.S. Dies NPT for PVC | 2 1/2 – 4 | 62.0 – 100.0 | 2.0 | 1.0 | |||||||
| 32242 | 1224 H.S. Dies BSPT for PVC | 2 1/2 – 4 | 62.0 – 100.0 | 2.0 | 1.0 | |||||||
| 33057 | 1224 H.S. Dies NPT for Stainless Steel | 2 1/2 – 4 | 62.0 – 100.0 | 2.0 | 1.0 | |||||||
| 33072 | 1224 45˚ Beveling Dies | 2 1/2 – 4 | 62.0 – 100.0 | 2.0 | 1.0 | |||||||
| 33077 | 1224 37 1⁄2˚ Beveling Dies | 2 1/2 – 4 | 62.0 – 100.0 | 2.0 | 1.0 | |||||||
| 44992 | 1224 Bevel Guide Set | 2 1/2 – 4 | 62.0 – 100.0 | 2.0 | 1.0 | |||||||
| 44997 | 1224 37 1⁄2˚ Bevel Bit Only | – | – | – | – | |||||||
| 45002 | 1224 45˚ Bevel Bit Only | – | – | – | – | |||||||
| 51005 | 819 | 819 Nipple Chuck Complete, 1/2" – 2" NPT | 0.5 – 2.0 | 6.0 – 50.0 | 10.5 | 4.8 | ||||||
| 61122 | 840A | SHAFT, 840A UNIVERSAL | – | – | 31.0 | 14.1 | ||||||
| 26187 | – | Jaw Insert and Roll Set for PE-Coated Pipe | – | – | 0.2 | 0.1 | ||||||
| 26212 | 764 | 1/4"-4" Wheel-Type Cutter | – | – | 19.0 | 8.6 | ||||||
| 26217 | 744 | 1/4"-4" Blade-Type Reamer | – | – | 13.0 | 5.9 | ||||||
| 26707 | – | Transmission Grease, 1 Lb. | – | – | 1.0 | 0.5 | ||||||
| 34157 | 419 | Nipple Chuck 2 1/2" NPT | – | – | 5.5 | 2.5 | ||||||
| 34162 | 419 | Nipple Chuck 3" NPT | – | – | 5.5 | 2.5 | ||||||
| 34167 | 419 | Nipple Chuck 4" NPT | – | – | 5.5 | 2.5 | ||||||
| 34182 | 419 | Nipple Chuck 4" BSPT | – | – | 5.5 | 2.5 | ||||||
| 34577 | – | Reamer Blade 1/4" – 4" | – | – | 0.5 | 0.2 |
| Weight | 2.13 lbs |
|---|---|
| Dimensions | 5.1 × 2.9 × 1.7 in |
| CAPACITY (IN.) | 2 1/2 – 4 |
| CAPACITY (MM) | 62.0 – 100.0 |
| WEIGHT (LB.) | 2.0 |
| WEIGHT (KG) | 1.0 |
