12″ Hook Sheave533.44$

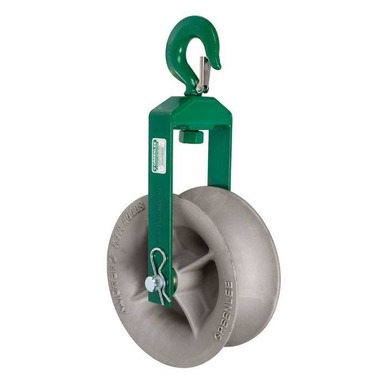

12″ Hook Sheave
533.44$
Add the desired quantity to the selected products.
- For use with UT8, UT5, 6001, UT4 and UT2 cable pullers
- Strong, welded steel frames
- Forged steel closure type hooks with 1 IN (25.4 mm) opening
- All three sheaves are aluminum alloy with self-lubricating bearings
Specifications
| Bore diameter | 1,002 in ±0,001 in |
| Keyway | Trou traversant |
| Outside diameter | 11,75 in |
| Spread diameter | Between 7,75 in and 11,75 in |
| Conception | Hook-type sheave |
| Gorge | R 2,5 in |
| Material | Steel frame/aluminum sheave |
| Includes | Dowel pin 50700 UPC 50700, sheave pin 00838 UPC 00838, sheave pin clip 50302UPC 50302, sheave unit 00843 UPC 00843, yoke frame 00854 UPC 00854 |
| Type | Poulie |
| Application | Electric cable puller |
| Capacity | Force nominale maximale 35,800 kN (8 000,000 lb) |
| * Greenlee® may make improvements and/or changes in product specifications at any time, at its sole discretion, without notice or obligation, and further reserves the right to change or discontinue models. |
| Weight | 29.41 lbs |
|---|---|
| Dimensions | 22.3 × 12.4 × 9.3 in |
| Bore Diameter | 1.002" +/- 0.001" |
| Keyway | Through hole |
| Outside Diameter | 11.75" |
| Pitch Diameter | Between 7.75" and 11.75" |
| Design | Hook Sheave |
| Groove | R 2.25" |
| Material | Steel Frame/ Aluminum sheave |
| Includes | 50700 UPC 50700 Roll Pin, 00838 UPC 00838 Sheave Pin, 50302UPC 50302 Sheave Pin Clip, 00843 UPC 00843 Sheave Unit, 00854 UPC 00854 Yoke Frame |
| Type | Sheave |
| Application | Electrical Cable pull |
| Capacity | 8000.000 LB (35.800 KN) Maximum Rated |
